Weaving loom avaWeaving looms around the world are built on the same principle but they are slightly different in each country. It’s actually natural that the craft of weaving in Scotland differ from the one in Ukraine or in India. So, there are special tricks and secrets of using a traditional loom in each country. Here is a short tutorial on how to weave on a traditional Scottish weaving loom.


The weaver that will teach us how to weave on a Scottish loom is a skilled craftswoman Christine McLeod from Scotland.

This is Christine McLeod. She’s a weaver at Weaver's Cottage in Kilbarchan, a National Trust for Scotland property. It is a hands-on museum that re-creates the living and working conditions of a typical Scottish handloom weaver before the Industrial Revolution.


Weaving loom1


So, let’s listen to her story about the loom and the process of weaving.

This type of loom is a traditional Scottish loom. It's over 200 years old and is typical for our country – such types of loom were in Scotland in the 18th century.

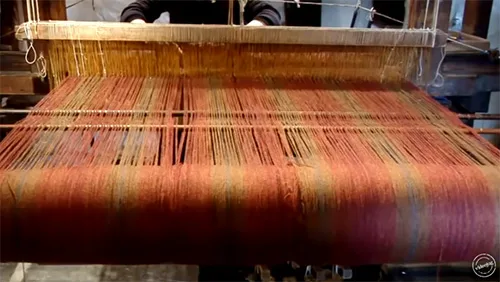

Weaving loom2


Every aspect of the weaving has been done by hand. The setup of the loom requires the most amount of accuracy. You'll notice that from the back of the loom, everything is straight done and that is, actually, down to the calculation of the yarn. In other words, everything is worked out on paper first.

Once you've got your loom set up, you're then ready to weave. The foot pedals are connected to lumbs, which are underneath the loom, and the lumbs are connected to the shafts, so that when I put my foot on the foot pedal, its raising up different shafts. Each foot pedal is raising up different shafts.

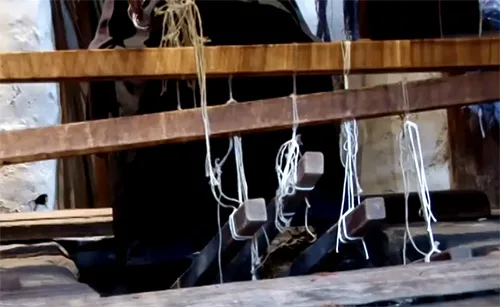

Weaving loom3


When you're comfortable with how this is all set up and how the strings all lie and everything is balanced, then you're ready to start weaving.

The weaving is done using the picking stick. And this is the thing that fires the shuttle from one end to the other. So when I put my foot on the foot pedal, what's happening also is it's making a space for the shuttle to fly through. The space is obvious to the weaver at the front. To take the shuttle through the space, all you have to do is pull a stick. Then, change foot pedal and fly it back.

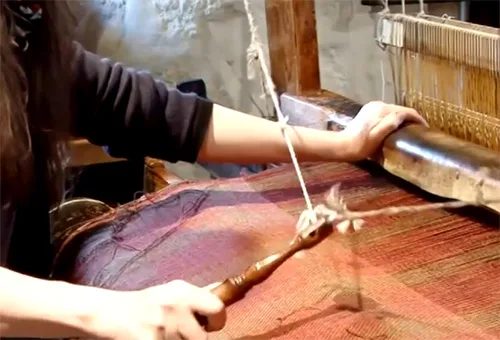

Weaving loom5


If you're working on a basic twill weave, which most tartans are, then it's just a repeat of that pattern.

Passing the shuttle backwards and forwards, you just continue to do in a set routine pattern until you have the desired length.

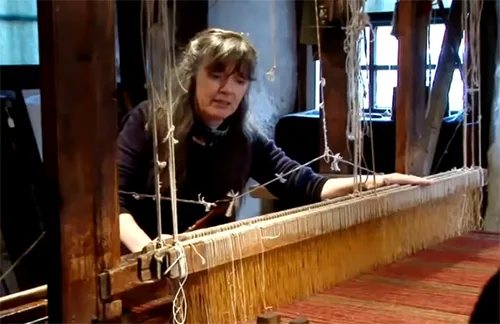

Weaving loom4


And that's how to use a traditional Scottish loom.
